Bit - Init

posthttps://api.tranzila.com/v1/transaction/bit/init

Process Overview

When an end user chooses to pay with Bit, your server calls a Tranzila API service. The response contains a URL that needs to be displayed in an Iframe. The Iframe contains a QR (and a phone number to get a push notification for the payment to the customer mobile phone). When the end user completes the payment, the iframe will be redirected to a success or failure page.

Please create an iFrame using the sale URL.

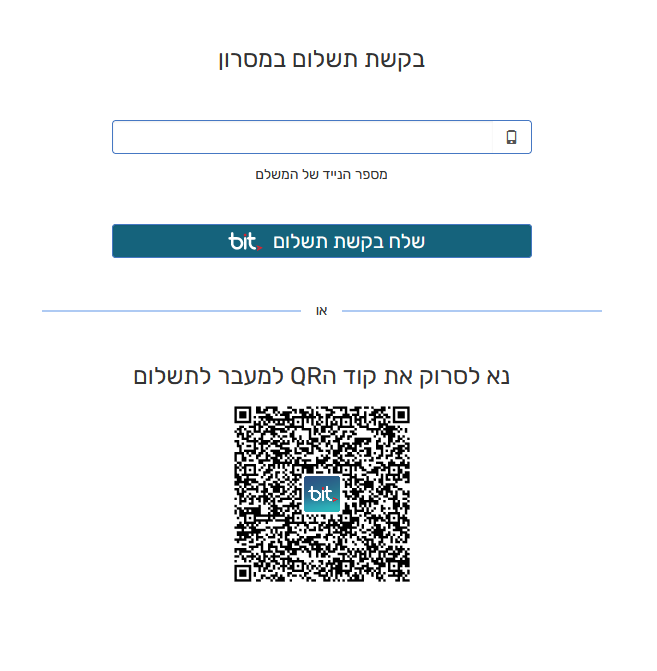

Desktop

Contains QR code. In case the merchant has a definition to allow receiving the bit link to the mobile, an input for the cellular number will be displayed.

alt text

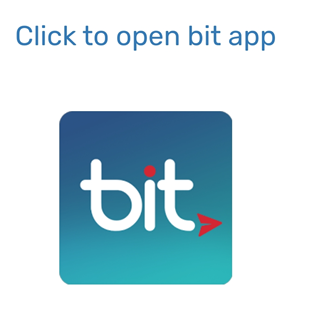

Mobile

alt text

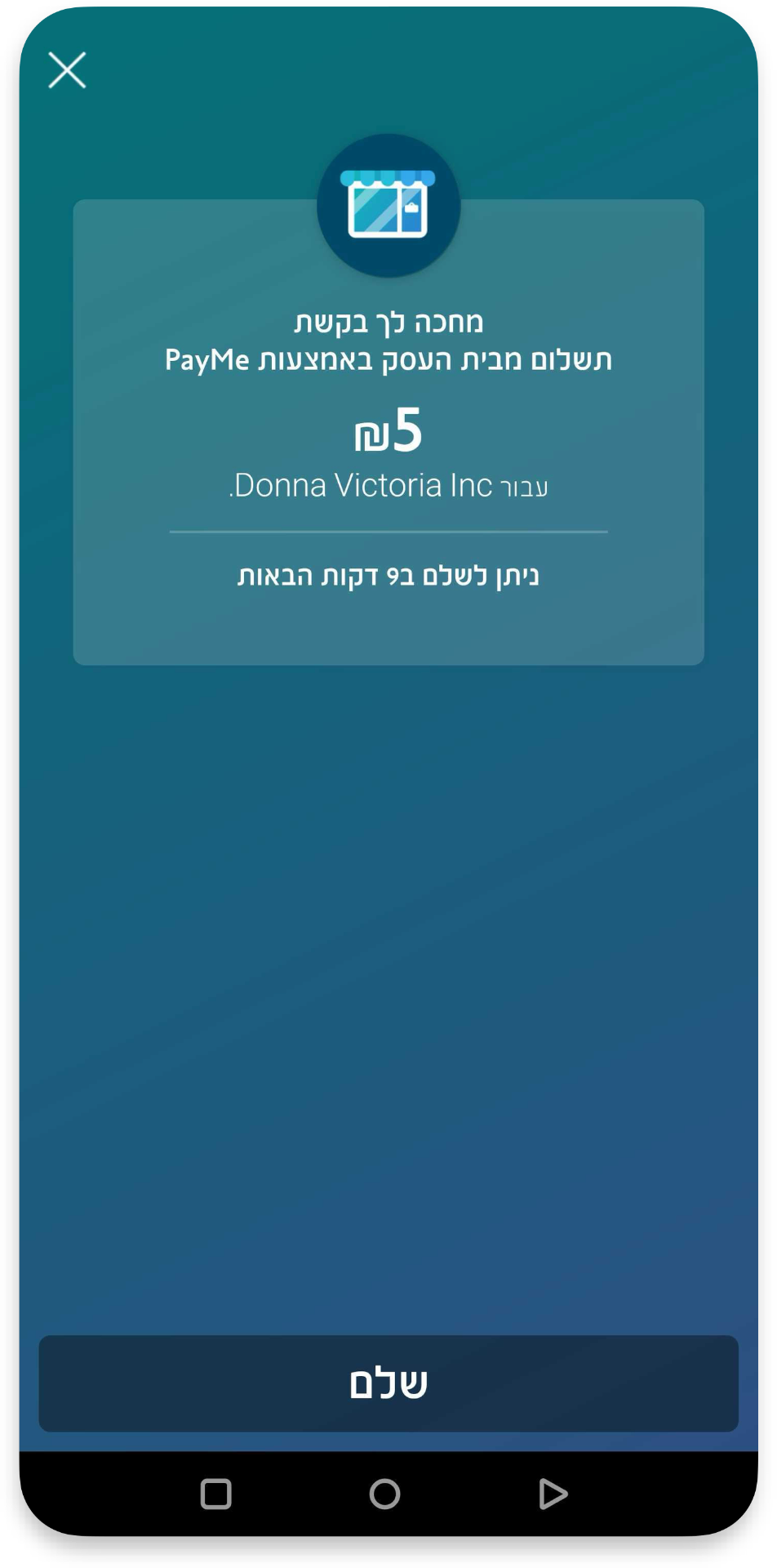

Bit Payment Page

After the customer will complete the transaction with Bit app, the page will redirect to success_url or failure_url.

Request Keys

key	type	value	required*	remarks
terminal_name	string	yourTerminalName	R
txn_currency_code	string	ILS	R	ISO 4217 Currency Code
txn_type	string	debit	R
success_url	string	http://www.mywebsite/success	R	Redirect address for success
notify_url	string	http://www.mywebsite/notify	R	When a purchase is completed, regardless of success or failure, the API will send a notification to this URL. It acts as a callback to let you know about the outcome of the purchase, so you can take any necessary actions on your side based on that information.
failure_url	string	http://www.mywebsite/failure	R	Redirect address for failure
expire_month	integer	6	R
other_installments_amount	integer		CR	Other installment amount for payment_plan – 8,6
client
Items	array		R	The amount of the transaction is calculated from the items details. There must be at least one item.
response_language	string	english	R	english, hebrew
user_defined_fields	Object		CR	Key, value parameters. Keys must be identical to user defined fields in ‘My Tranzila’

R – required, O – optional, C – conditional, CR – conditionally required.

Client Keys

key	type	required*	remarks
company	string	O
name	string	O
id	string	O
email	string	O	email address
address_line_1	string	O	address line 1
address_line_2	string	O	address line 2
city	string	O
zip	string	O

Items Keys

key	type	value	required*	remarks
code	string		O
name	string		R	Item name
type	string	I	O	I – Item S - Shipping C – Coupon or discount
unit_price	number		R
units_number	number		R
unit_type	number	1	O	all unit types
price_type	string	N	O	N – Net (Unit price includes does not include VAT tax) G – Gross (Unit price includes VAT tax)
currency_code	string	ILS	O	ISO 4217 Currency Code
to_txn_currency_exchange_rate	number	1	O	If the currency is different than transaction currency, please send exchange rate to the transaction currency.
discount_type	string	fixed	C	Values: fixed, percent
vat_percent	integer	17	O	Item vat percent.
attributes	Array of objects		O

R – required, O – optional, C – conditional, CR – conditionally required.

Unit type Reference

key	value
1	unit
2	gram
3	kilogram
4	ton
5	day
6	week
7	month
8	year
9	centimeter
10	meter
11	kilometer
12	MB
13	GB
14	TB
15	hour
16	litre

attributes Keys

key	type	required*
language	string	R
name	string	R
value	string	R

Request

Headers

X-tranzila-api-access-tokenstringrequired

hash_hmac using ‘sha256’ on application key with secret + request-time + nonce. hash_hmac is available for all programming languages with samples found here: https://www.jokecamp.com/blog/examples-of-creating-base64-hashes-using-hmac-sha256-in- different-languages/

Example:775adb3ad32ef10bcb23b63427511463b0a784abf79287342142656f4e3c5de0

X-tranzila-api-noncestringrequired

A 40 bytes NONCE – unique random string generated with any random bytes function

Example:SuIu6YDtFZ4kZn7tKGy3HIDSPwuYkeWi2FTwkgKiVCm6KnoXxPEwxzlsUx6CTZwOE1ecKo0ARCUEz1y6

X-tranzila-api-app-keystringrequired

Application public key supplied by Tranzila

Example:vnNtAoXX735jmQviLuMgXEk1fGNCasL92UKW4GLBh8Kk442gK7TqddLNuPnNReixTJI9z8b1g0A

X-tranzila-api-request-timestringrequired

Request time sent in Unix format (large integer counting milliseconds from Jan 1 st , 1970 00:00:00

Example:1682840810

Body

application/json

terminal_namestringrequired

txn_currency_codestring

txn_typestring

success_urlstringrequired

failure_urlstringrequired

notify_urlstring

clientobject

itemsarray[object]required

response_languagestring

created_by_userstring

created_by_systemstring

user_defined_fieldsarray[object]

Responses

The response can be 200 with an Application error code:

Error Code	Description
20100	No Bit seller account
20101	Provider communication error
20102	Pending transaction failure
20103	Zero discount, when discount enabled
20105	Provider configuration error

Response body

response.json

JSON

1{
2  "error_code": 0,
3  "message": "string",
4  "sale_url": "string"
5}
6
